MULTIPOINT HANDS (FREE KIT USER MANUAL 1. About the Black Diamond ME100 Hands Fre e Kit The Black Diamond ME100 Hands Free Kit is compatible with Bluetooth mobile phones. The Multipointfunction enables you to connect up to two Bluetooth mobile phones to the Hands Free K i t at the same time.

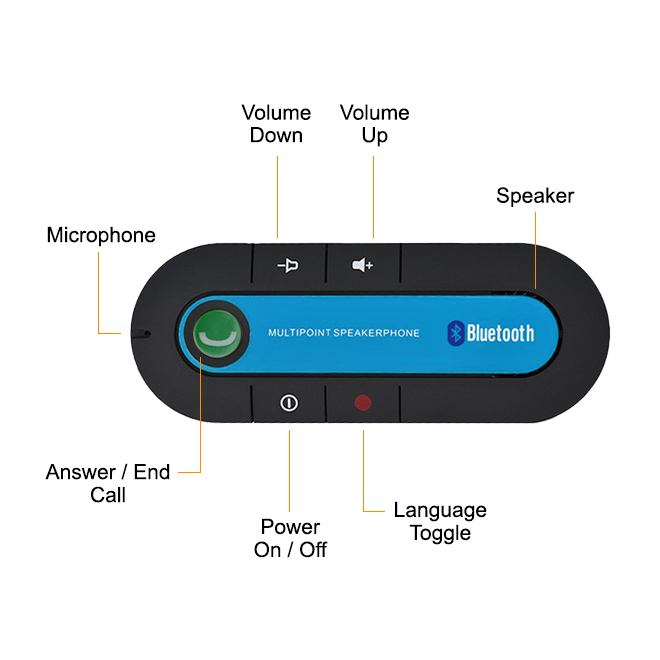

Although the Bluetooth Speakerphone makes mobile communication safer & easier, it is suggested that you focus on driving and use your phone as little as possible. Overview This Product is suitable for most devices that have Bluetooth enabled. Installation inside of your vehicle Simply install the product at a proper position on the sun-visor, using the clip that comes included in the product packaging. Ideally, you want to be able to reach for the button, to answer calls. Here is an example of how you can place your Bluetooth Speaker / Speaker phone. Front Appearance of Bluetooth Speakerphone 4.

Charging The Bluetooth Speakerphone comes with a rechargeable battery. Prior to using the device, it is recommended to fully charge the battery. Normal full charging time is 2 hours (approximately). The Red LED will flash every 3 seconds when the battery is low. The Red LED is constantly On during charging and will turn Off when charging is finished. Dragon ball z raging blast 2 pc utorrent.

Power On/Off 1. Power On: Under Off mode, press and hold the “MFB” for 1 second until you hear “Power on”.

The Bluetooth Speakerphone will power On and automatically connect with the last device (phone, tablet, PC or Mac) it connected with. Power Off: In Standby mode, press and hold the MFB button for 5 seconds until you hear “Power off”. After being disconnected with a mobile phone for 10 minutes, the Bluetooth Speakerphone will shutdown automatically to save power. Language Selection The Speaker / Speakerphone supports 5 languages: English, Italian, Spanish, French and German. Under standby mode, press and hold the “Mute” button for 1 second to hear the language options & select the preferred language.

Bluetooth Pairing/Connecting Prior to using the Bluetooth Speakerphone for the first time, it should be paired and connected manually with a Bluetooth enabled device. The Bluetooth Speakerphone can be paired with up to 2 devices. Take the following steps for Bluetooth Pairing: 1.

Ensure the Bluetooth Speakerphone is Off. Press and hold the “MFB” for 3 seconds until the Red and Blue LED lights flash alternatively. This means the Bluetooth Speakerphone is ready for pairing. On your Mobile Device, within your Bluetooth settings, search and connect to “BT Speaker”. If a password is required, enter in “0000”.

Dual Connections. The Bluetooth Speakerphone can connect up to 2 devices, simultaneously. After pairing with the first device, press and hold the “MFB” for 3 seconds until the Red and Blue LED lights flash alternatively, to enter pairing mode again. Follow the same steps above, to pair your second device. Note: If your device will not successfully pair with your Bluetooth Speakerphone within 2 minutes, the Speakerphone will shut automatically to conserve its battery. Music Play 1. Play/Pause: Press the “MFB” for 1 second.

Previous/Next: Press the “V-” for the previous song. Press “V+” for the next song.

Volume Adjustment: Press and hold “V+” to increase. 96 hour chick embryo serial section 1. Press “V-” to decrease volume. Using the Bluetooth Speakerphone After a successful Bluetooth pairing, any incoming or outgoing call with automatically be connected to the Bluetooth Speakerphone. The following functions are available: 1.

Answering a Call / Voice Control: When an incoming call arrives, the Bluetooth Speakerphone will ring and announce the incoming number. Press the MFB button once or say “yes” (if you have voice-control activated on your device) to answer the call. Ending a Call: While talking, press the “MFB” once to hang up 3. Rejecting a Call / Voice Control: Press and hold the “MFB” to 1 second or say “NO” to reject the call. Last number redial: Press the “MFB” twice to redial the last number. Voice Dialing: Under Standby-mode, press the “MFB” once to initiate voice dialing directly from the Bluetooth Speakerphone.

Volume Adjustment: While talking, press the “V+” or “V-” buttons to adjust the volume. Mute: While talking, press the “MUTE” button for mute (you can hear the other party, but they cannot hear you). Under Mute mode, the blue LED is constantly on 10. Reset Bluetooth Speakerphone to Default Settings To reset the Bluetooth Speakerphone settings, under standby mode press and hold the “V+” and “V-” buttons for 5 seconds until the blue and red LED indicators flash 3x, simultaneously.
